Change PIN

Once a user has logged in to the application, they can change their pin. The Change Pin flow involves these events.

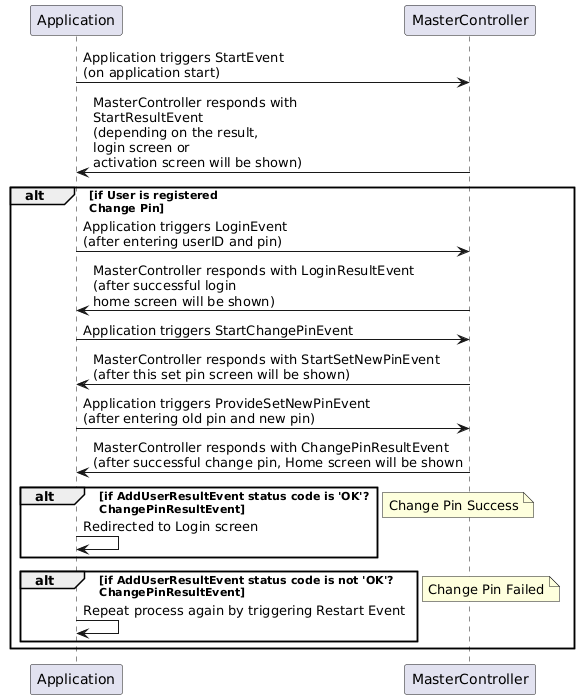

ChangePin event flow-diagram.

The following diagram shows the working of the change pin process.

iOS/Swift

The user needs to trigger a StartChangePin Event, so for Swift you can trigger that by this snippet:

Triggering StartChangePin Event (Swift)

masterControllerAdapter.sendEvent2MasterController(
    KSMStartChangePinEvent(), withCompletionHandler: nil)

Next, you need to send the SetNewPin Event, this is done by the following snippets:

Triggering SetNewPin Event (Swift)

masterControllerAdapter.sendEvent2MasterController(
    KSMProvideSetNewPinEvent(currentPin: oldPin,
                             andPin: newPin),
	withCompletionHandler: nil)

Android/Kotlin

For Kotlin, we have created a dedicated method in the MCHandler class of our example app to trigger this event. Below is the code snippet:

Triggering StartChangePin Event (Kotlin)

fun triggerStartChangePinEvent() {
    logDebug(
             "triggering StartChangePinEvent",
             "triggerStartChangePinEvent",
             TAG
	)
    launchIO {
        mcEventHandler?.postEvent(StartChangePinEvent())
    }
}

Next, you need to send the ProvideSetNewPinEvent, this is done by the following snippets:

Triggering SetNewPin Event (Kotlin)

fun triggerProvideSetNewPinEvent(currentPin: String, newPin: String) {
    logDebug(
             "triggering ProvideSetNewPinEvent with currentPin =>$currentPin && newPin => $newPin",
             "triggerProvideSetNewPinEvent",
             TAG
    )

    val setNewPinEvent = ProvideSetNewPinEvent(currentPin, newPin)
    launchIO {
        mcEventHandler?.postEvent(setNewPinEvent)?.then {
            // handle result
        }
    }
}
