Reactivation (Forgot PIN)

After Activation if user forgets their pin then by Reactivation the user can generate a new pin by providing a new activation code and pin - where the activation code can be generated on the SSMS portal. See the test case description on how to do that.

Reactivation flow consists of these events.

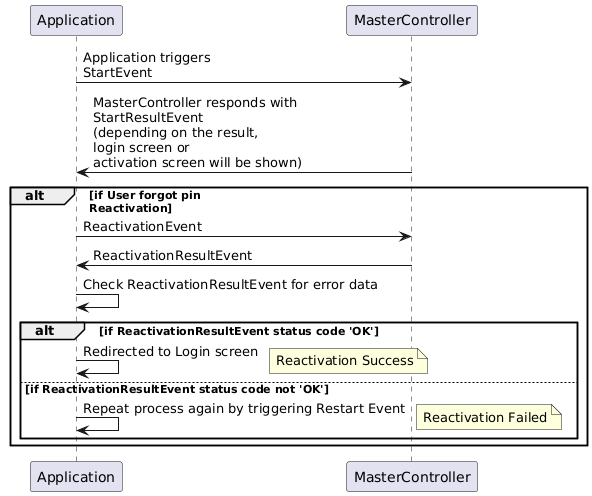

Reactivation event flow-diagram​

The following diagram shows the working of reactivation.

iOS/Swift​

The user needs to trigger a ReactivationEvent, so for Swift you can trigger that by this snippet:

Triggering ReactivationEvent Event (Swift)
public func triggerReActivationEvent(activateData: ActivateData) {
    let userIdentifier = KsUserIdentifier(tenantId: activateData.tenantId, userId: activateData.userId)
    let activationEvent = KSMReactivationEvent(userIdentifier: userIdentifier, activationCode: activateData.activationCode, pin: activateData.pin, enableAutoLogin: activateData.enableAutologin)

    masterControllerAdapter.sendEvent2MasterController(activationEvent) { event in
        guard let newEvent = event else {
            return
        }
        MCHandler.sharedInstance.masterControllerAdapter.receive(newEvent)
    }
}

Android/Kotlin​

For Kotlin, we have created a dedicated method in the MCHandler class of our example app to trigger this event. Below is the code snippet:

Triggering ReactivationEvent Event (Kotlin)
fun triggerReactivationEvent(
    userIdentifier: UserIdentifier,
    activationCode: String,
    pin: String,
    autoLogin: Boolean
) {
    val reactivationEvent = ReactivationEvent(userIdentifier, activationCode, pin, autoLogin)
    launchIO {
        mcEventHandler?.postEvent(reactivationEvent)?.then {
            // handle result
        }
    }
}

All Platforms​

As response to ReactivationEvent the Master Controller sends a ReactivationResultEvent with appropriate status.
