KOBIL Phone Registration
KOBIL Phone Registration
This execution has the following main tasks
- To collect and verify the phone number of the user, if the phone number is not available.
- To verify the phone number of the user, if the phone number is already available.
Type
| Protocol | OpenID Connect 1.0 |
|---|---|
| HTTP method | GET |
| Type | Browser Flow |
| Endpoint | Authorization Endpoint |
| Flow Supported | Authorization code flow Implicit flow Hybrid flow |
| Response | ID Token, Access Token, Refresh Token |
| Response Mode | query, form_post, fragment |
How to configure
To access the config of the execution press the Actions button and select Config. The authenticator configuration screen will appear. Then enter your config data.
Configuration
Parameters involved in Account - KOBIL Change phone execution
| Parameter | Description |
|---|---|
| ID | Unique system UUID, which will be assigned automatically. |
| Alias | Display name of configuration, which occurs in authentication flow. (Example: Phone Registration) |
| Force Phone Verification | Enable to force phone verification, even phone is already verified. |
| Disable Back Button | Disable the back button in the forgot password flow. |
| Phone Verification Code TTL | Provide the validity of the verification code. (Example: for days 2d, for hours 2h, for secs 2s.) Default value is 1h. |
| Phone Verification Code Length | Length of the SMS code. Default value is 6. |
| Show Phone Confirmation | Enable to show phone confirmation view. |
| Phone Retry Limit | Phone Retry Limit. Default value is 5. |
| Phone Retry Delay | Phone Retry delay in seconds and between every attempts previous time will be doubled: Default value is 5 seconds. |
| Template of text to send to the user | Add phone message template, following attributes are supported {first_name}, {last_name}, {code}, and {expiration}. |
User Flow

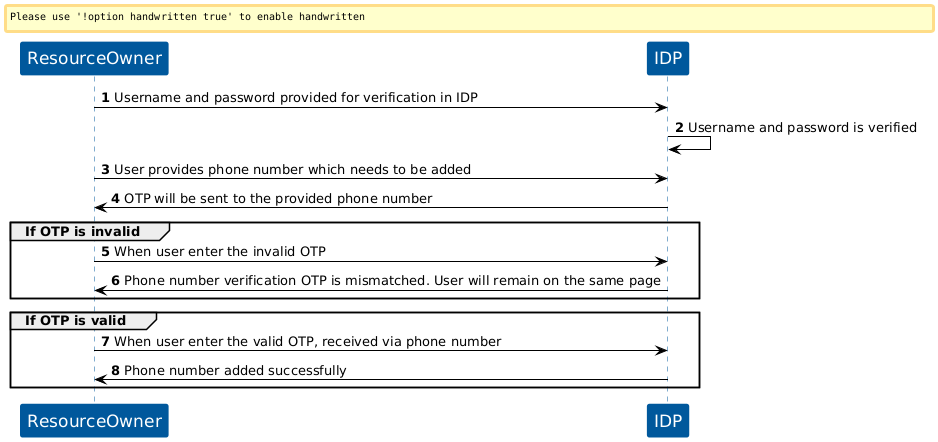

Execution Flow
This execution contains the following main steps:
- KOBIL Phone registration must be preceded by another authenticator since it procures a username from this precedent authenticator. For instance: KOBIL Username Password Form for user identification.
- The OTP will be sent to the phone number which we entered, once the user enters the valid OTP, the user phone number will be added on successful authentication.
