KOBIL User Group Registration
KOBIL User Group Registration
The main task of this execution is to add a User to a Configured Group.
Type
| Protocol | OpenID Connect 1.0 |
|---|---|
| HTTP method | GET |
| Type | Browser Flow |
| Endpoint | Authorization Endpoint |
| Flow Supported | Authorization code flow Implicit flow Hybrid flow |
| Response | ID Token, Access Token, Refresh Token |
| Response Mode | query, form_post, fragment |
How to configure
To access the config of the execution press the Actions button and select Config. The authenticator configuration screen will appear. Then enter your config data.
Configuration
Parameters involved in Condition ID Verification
| Parameter | Description |
|---|---|
| ID | Unique system UUID, which will be assigned automatically. |
| Alias | Display name of configuration, which occurs in authentication flow. (Example: User Group) |
| User Group | Add User to the group only if available. |

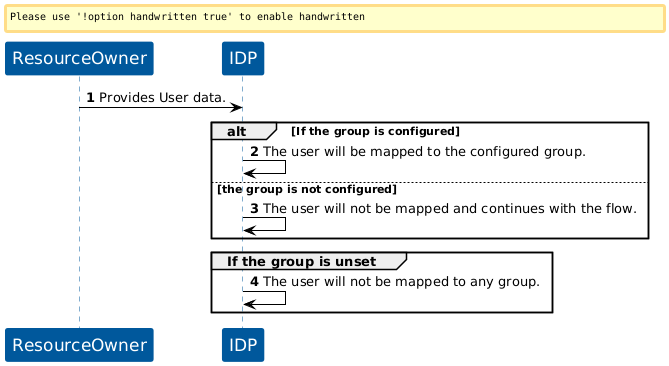

User Flow
Execution Flow
This execution contains the following main steps:
- KOBIL User Group Registration must be preceded by 1FA since it procures a user's identity validation from this precedent Authenticator. For instance: KOBIL Configure User Identity.
- When an User executes into the flow, the user will be mapped to the configured group.
