Account - KOBIL Change Phone
Account - KOBIL Change Phone
note
- This authenticator has been deprecated from IDP 5.0.0.
This execution has the following main tasks
- To add/update the phone number of the user.
Type
| Protocol | OpenID Connect 1.0 |
|---|---|
| HTTP method | GET |
| Type | Browser Flow |
| Endpoint | Authorization Endpoint |
| Flow Supported | Authorization code flow Implicit flow Hybrid flow |
| Response | ID Token, Access Token, Refresh Token |
| Response Mode | query, form_post, fragment |
How to configure
To access the config of the execution press the Settings button and select Config. The authenticator configuration screen will appear. Then enter your config data.
Configuration
Parameters involved in Account - KOBIL Change phone execution
| Parameter | Description |
|---|---|
| ID | Unique system UUID, which will be assigned automatically to record in a database. |
| Alias | Name for the overall configured configurations which occurs in particular authenticator.(Example: phone) |
| Force Phone Verification | Enable for mandatory phone verification, even if the phone is already verified. |
| Phone Verification Code TTL | Specify the validity period for the verification code. (Example: 2d for days, 2h for hours, 2s for seconds.) The default value is 1h. |
| Phone Verification Code Length | Set the length of the SMS code. The default value is 6. |
| Show Phone Confirmation | Turn on to display the phone confirmation view. |
| Phone Retry Limit | Define the phone retry limit. The default value is 5. |
| Phone Retry Delay | Set the phone retry delay in seconds; with each attempt, the previous time will be doubled. The default value is 5 seconds. |
| Template of text to send to the user | Add a phone message template; supported attributes include {first_name}, {last_name}, {code}, and {expiration}. |

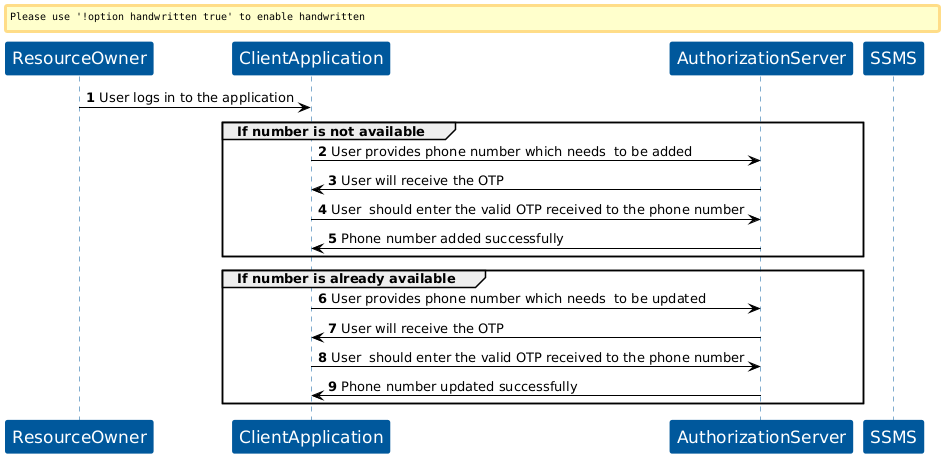

User Flow
Execution Flow
This execution contains the following main steps:
- KOBIL Change Phone must be preceded by another authenticator since it procures a username from this precedent authenticator. For instance: KOBIL Login for user identification.
- On successful authentication, the user phone number will be added/updated.
- 2a. If the phone number is already present, the OTP will be sent to the new number which we entered, once the user enters the valid OTP the phone number will be updated.
- 2b. If the phone number is not present, the OTP will be sent to the new number which we entered, once the user enters the valid OTP the new number will be added.
