KOBIL User Group Registration

KOBIL User Group Registration

The main task of this execution is to add a User to a Configured Group.

Type

ProtocolOpenID Connect 1.0
HTTP methodGET
TypeBrowser Flow
EndpointAuthorization Endpoint
Flow SupportedAuthorization code flow
Implicit flow
Hybrid flow
ResponseID Token, Access Token, Refresh Token
Response Modequery, form_post, fragment

How to configure

To access the config of the execution press the Settings button and select Config. The authenticator configuration screen will appear. Then enter your config data.

KOBIL User Group Registration

Configuration

Parameters involved in Condition ID Verification
ParameterDescription
IDUnique system UUID, which will be assigned automatically to record in a database.
AliasName for the overall configured configurations which occurs in particular authenticator.(Example: User Group)
User GroupAdd User to the group only if available.

KOBIL User Group Registration

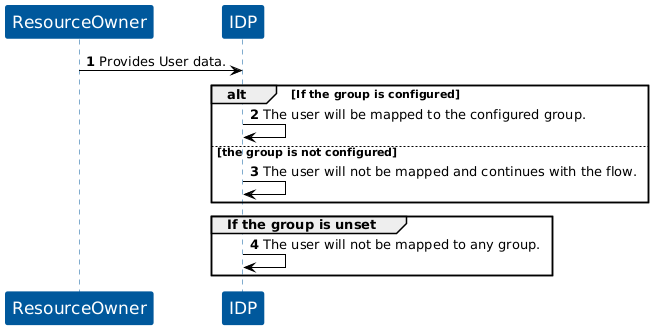

User Flow

Execution Flow

This execution contains the following main steps:

  1. KOBIL User Group Registration must be preceded by 1FA since it procures a user's identity validation from this precedent Authenticator. For instance: KOBIL Configure User Identity.
  2. When an User executes into the flow, the user will be mapped to the configured group.
