The main use case is to authenticate the user based on the access token and exchange it for a different access token with limited scope or authorization code.

Type

Protocol	OpenID Connect 1.0
HTTP method	GET
Type	Browser Flow
Endpoint	Authorization Endpoint
Flow Supported	Authorization code flow Implicit flow Hybrid flow
Response	ID Token, Access Token, Refresh Token
Response Mode	query, form_post, fragment

How to configure

To access the config of the execution press the Settings button and select Config . The authenticator configuration screen will appear. Then enter your config data.

Configuration

Parameters involved in KOBIL Cookie execution

Parameter	Description
ID	Unique system UUID, which will be assigned automatically to record in a database.
Alias	Name for the overall configured configurations which occurs in particular authenticator.
Header/Cookie Name	Provide a name of the "key" also called "field, name" send during client authentication request either in the header or in the cookie. For Example: 1FA-Token
Result ACR Value	Provide the ACR Value which needs to be added to the token.
Expected Client Name	Configure the client name should provided in the azp (authorized party) of the token.
Enable Loader	If enabled error page will be displayed when navigating back from the next authenticator.
AST Registration	If enabled, activates or verifies users in AST and links user to AST client.
AST Login	If enabled initiates AST login for user.
AMR value	Configure the AMR value for token when flow succeeds.
Enable BruteForce Check	If enabled, an error page is displayed when user is locked in bruteforce.

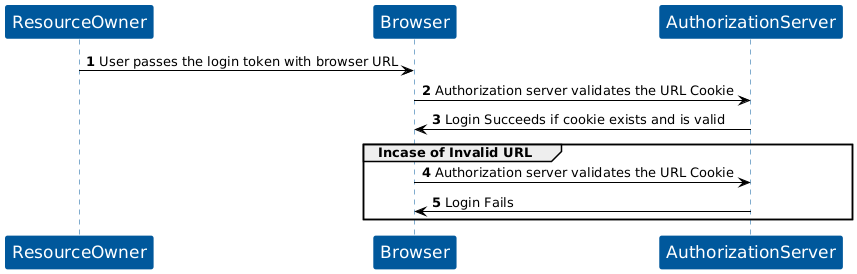

Execution Flow

This execution contains the following main steps:

1. KOBIL Cookie is an independent authenticator and could be used without any precedent authenticator.
2. An access token is generated and stored in the server for every user during the IAM onboarding.
3. The token should either be set in the header or the client portal URL cookie.
4. Now when the user tries to login, the access token is verified and login happens.

How to verify cookie using postman collection:

• Download the postman collection here.

• Use the Get Access token API to generate an access token.

• Use the sample GET method named "KOBIL Cookie" for reference.

• Paste the `authorization URL in the request URL section.

• Go to the "Headers" tab and add the previously generated access token in the value parameter and send the request.

  Else

• Go to the "Cookies" tab -> Add Cookie and add the previously generated access token in the value parameter and send the request.

• If the request is fetched successfully, then the cookie is verified.

Development

Example

curl --location --request GET 'midprovider.kobil.com/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd' \
--header '2FA-token: {{access token}}' \
--header 'Content-Type: application/x-www-form-urlencoded'

OkHttpClient client = new OkHttpClient().newBuilder()
  .build();
Request request = new Request.Builder()
  .url("midprovider.kobil.com/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd")
  .method("GET", null)
  .addHeader("2FA-token", "{{access token}}")
  .addHeader("Content-Type", "application/x-www-form-urlencoded")
  .build();
Response response = client.newCall(request).execute();

var settings = {
  "url": "midprovider.kobil.com/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd",
  "method": "GET",
  "timeout": 0,
  "headers": {
    "2FA-token": "{{access token}}",
    "Content-Type": "application/x-www-form-urlencoded"
  },
};

$.ajax(settings).done(function (response) {
  console.log(response);
});

import http.client
import mimetypes
conn = http.client.HTTPSConnection("midprovider.kobil.com")
payload = ''
headers = {
  '2FA-token': '{{access token}}',
  'Content-Type': 'application/x-www-form-urlencoded'
}
conn.request("GET", "/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd", payload, headers)
res = conn.getresponse()
data = res.read()
print(data.decode("utf-8"))

Example combined with Condition - ACR KOBIL Cookie

Basically only the extra paramater needs to be added to the header. For example --header '1FA-token: {{1FA access token}}' is added to the request.

The name of the parameter can be defined in configuration under section "Header/Cookie Name".

curl --location --request GET 'midprovider.kobil.com/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd' \
--header '1FA-token: {{1FA access token}}' \
--header '2FA-token: {{2FA access token}}' \
--header 'Content-Type: application/x-www-form-urlencoded'

var settings = {
  "url": "midprovider.kobil.com/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd",
  "method": "GET",
  "timeout": 0,
  "headers": {
    "1FA-token": "{{1FA access token}}",
    "2FA-token": "{{access token}}",
    "Content-Type": "application/x-www-form-urlencoded"
  },
};

$.ajax(settings).done(function (response) {
  console.log(response);
});

OkHttpClient client = new OkHttpClient().newBuilder()
  .build();
Request request = new Request.Builder()
  .url("midprovider.kobil.com/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd")
  .method("GET", null)
  .addHeader("1FA-token", "{{1FA access token}}")
  .addHeader("2FA-token", "{{access token}}")
  .addHeader("Content-Type", "application/x-www-form-urlencoded")
  .build();
Response response = client.newCall(request).execute();

import http.client
import mimetypes
conn = http.client.HTTPSConnection("midprovider.kobil.com")
payload = ''
headers = {
  '1FA-token': '{{1FA access token}}',
  '2FA-token': '{{access token}}',
  'Content-Type': 'application/x-www-form-urlencoded'
}
conn.request("GET", "/digitanium/v3/auth?client_id=ibm_ega&response_type=code&redirect_uri=app://login&scope=openid&response_mode=querry&nonce=sadasdsadasd", payload, headers)
res = conn.getresponse()
data = res.read()
print(data.decode("utf-8"))
