KOBIL Contact Admin

KOBIL Contact Admin

Main task of this execution is to provide the contact details of support desk.

Type

ProtocolOpenID Connect 1.0
HTTP methodGET
TypeBrowser Flow
EndpointAuthorization Endpoint
Flow SupportedAuthorization code flow
Implicit flow
Hybrid flow
ResponseID Token, Access Token, Refresh Token
Response Modequery, form_post, fragment

How to configure

To access the config of the execution press the Settings button and select Config. The authenticator configuration screen will appear. Then enter your config data.

KOBIL Contact Admin flow

Configuration

Parameters involved in KOBIL Contact Admin execution
ParameterDescription
IDUnique system UUID, which will be assigned automatically to record in a database.
AliasName for the overall configured configurations which occurs in particular authenticator.
Login URLProvide the redirect URL where it should be redirected on successful authentication.

KOBIL Contact Admin flow

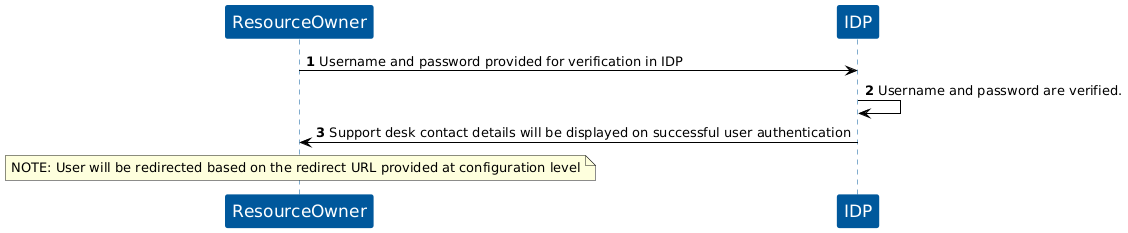

User Flow

Execution Flow

This execution contains following main steps:

  1. KOBIL Contact Admin must be preceded by another authenticator, since it procures username from this precedent authenticator. For instance: KOBIL Username Password Form for user identification.
  2. The authenticator will provide the contact details of support desk on successful user authentication.
KOBIL Contact Admin flow
