KOBIL ID Card Registration
KOBIL ID Card Registration
The main task of this execution is to check if the User is Registered.
Type
| Protocol | OpenID Connect 1.0 |
|---|---|
| HTTP method | GET |
| Type | Browser Flow |
| Endpoint | Authorization Endpoint |
| Flow Supported | Authorization code flow Implicit flow Hybrid flow |
| Response | ID Token, Access Token, Refresh Token |
| Response Mode | query, form_post, fragment |
How to configure
To access the config of the execution press the Settings button and select Config. The authenticator configuration screen will appear. Then enter your config data.
Configuration
Parameters involved in KOBIL ID Card Registration
| Parameter | Description |
|---|---|
| ID | Unique system UUID, which will be assigned automatically to record in a database. |
| Alias | Name for the overall configured configurations which occurs in particular authenticator. (Example: KOBIL ID Card Reg) |
| JSON Script | JSON to display inputs in Headless V2 theme. |

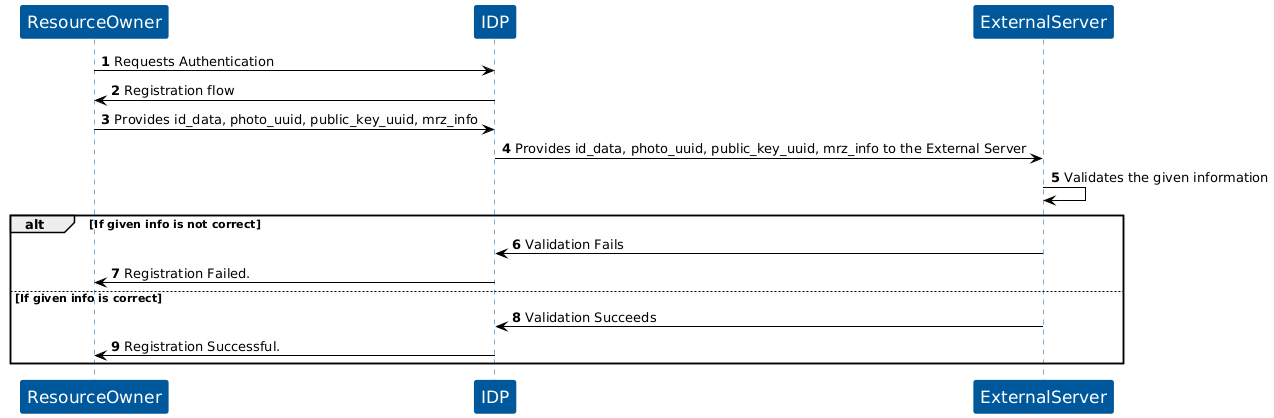

User Flow
Execution Flow
This execution contains the following main steps:
- KOBIL ID Card Registration must be preceded by another authenticator since it procures a user validation from this precedent Authenticator. For instance:KOBIL Cookie, Condition - ID Verification, KOBIL ID Card Registration for user validation.
- This Authenticator registers User by getting data from the User and verifies with External Server.
